4.2 Making a dynamic multiple choice question

Source Variable is available in Multiple Choice Question nodes. This node type can be made dynamic by assigning it a source variable which contains a properly structured data source at runtime.

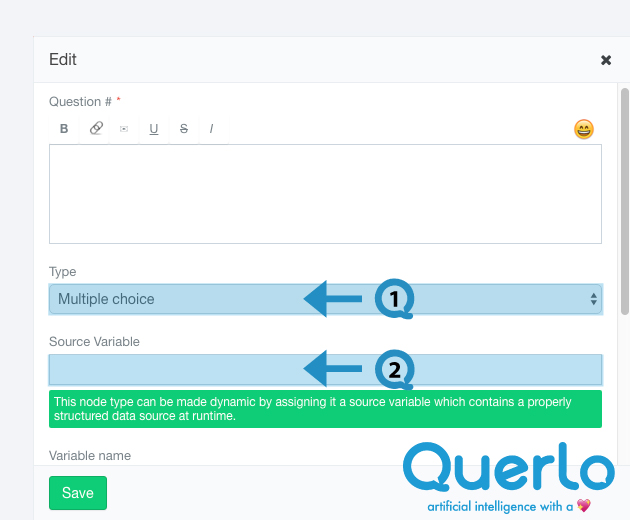

Locating the Source Variable field

Add a Question node by clicking on the last node to access the contextual menu and choose β€œNew Question” to open up the Edit form.

(Q1) Choose β€œMultiple Choice” for this question node.

(Q2) Source Variable.

Example – Test Datasource URL for dynamic Questions

https://www.querlo.com/tests/get_dynamicQuestion

The result of this call should contain a JSON structure like in the above screenshot where s:1 means the call was completed successfully and questionData contains a string-encoded version of the JSON structure contained in the screenshot below:

Example – Making a dynamic multiple choice question

Step 1:

Add a Get from remote command node by filling the form as per the screenshot below and click save.

The GET from Remote Command node has automatically generated 2 answer nodes: [Failure], [Success] that begin 2 new branches in the flow.

Step 2:

Under the [Failure] branch, add a text node.

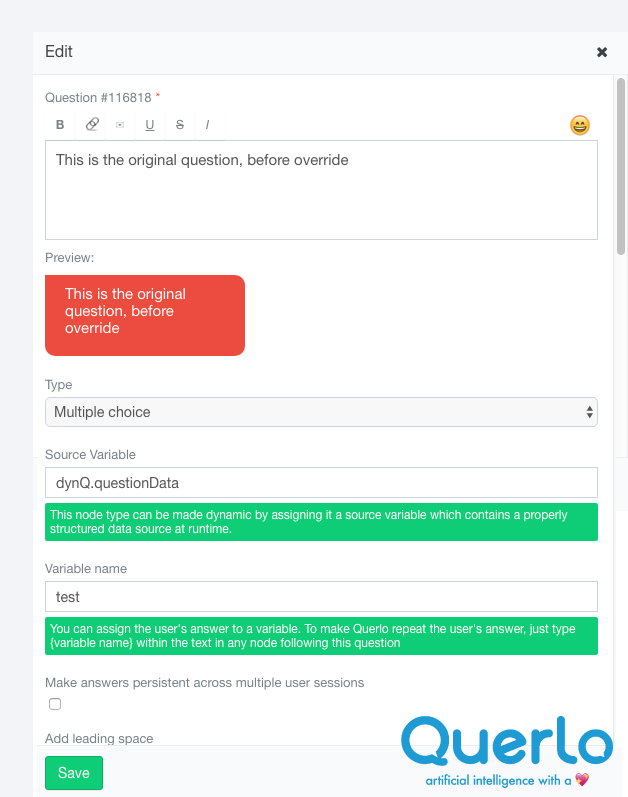

Under the [Success] branch, add a Multiple Choice Question node by filling the form as per the screenshot below and click save.

Step 3:

The Multiple Choice Question node that we have just created provides the action β€œNew Answer” for you to create multiple answer nodes via the contextual menu.

(Q1) Click on the Question node to access the contextual menu.

(Q2) Choose β€œNew Answer” to create an answer node.

Step 4:

Create two branches “a” and “b” as per the screenshot below.

Step 5:

Click the β€œPreview” button to open the chat HTML client which shows you how your chat is presented to the viewers.

>> Case 1: First answer, branch A

>> Case 2: Second Answer, branch A

>> Case 3: Third Answer, branch B
